Why Neoprene Rubber Is the Go-To Choice for Vibration Damping

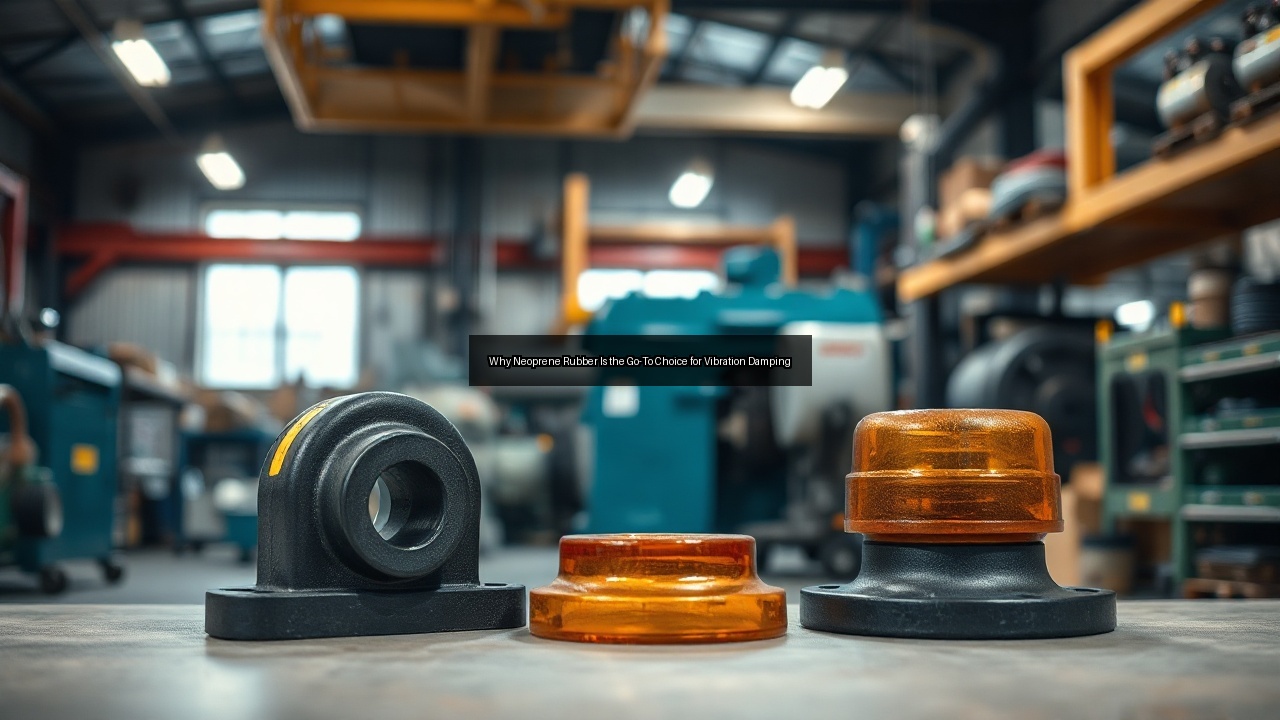

vibration reduction rubber mount transformer anti vibration mount dampers

Understanding Vibration and Its Impact

What is Vibration and Its Sources?

Vibration arises as oscillatory motion in mechanical systems, often generated by engines, compressors, and rotating machinery during operation. Industrial sites produce these forces through unbalanced loads or repetitive cycles in generators and pumps. Marine vessels experience constant inputs from propellers and hull impacts against waves. HVAC systems transmit vibrations from fans and motors into building structures. Construction equipment adds further disturbances via heavy diesel engines. Effective vibration damping starts with identifying these origins to select appropriate anti vibration rubber mounts that interrupt transmission paths before damage accumulates.

Additional sources include reciprocating compressors that create pulsed forces at multiples of their operating RPM, as well as gear meshing in gearboxes that produces high-frequency tonal vibrations. In power plants, turbine blades passing stator vanes generate periodic excitations that must be isolated early. Identifying both primary and secondary sources allows engineers to map the full vibration signature of a facility or vessel, ensuring that anti vibration rubber mounts are positioned at critical junctions where energy transfer is highest.

Types of Vibration: Harmonic vs. Random

Harmonic vibration follows predictable periodic patterns at specific frequencies, common in balanced rotating equipment like electric motors or generators. Random vibration delivers irregular, broadband energy across multiple frequencies, typical in marine environments or rough industrial floors. Harmonic inputs allow precise tuning of neoprene rubber stiffness for targeted isolation. Random vibrations demand broader damping properties to handle unpredictable spikes. Anti vibration mounts must address both types to maintain machine stability and prevent fatigue in surrounding components such as pipe hangers or transformer bases.

Harmonic vibration often appears as discrete peaks on a frequency spectrum, allowing engineers to calculate transmissibility ratios and select mounts with natural frequencies well below the operating speed. Random vibration, by contrast, follows statistical distributions such as Gaussian or Rayleigh profiles, requiring mounts whose loss factor remains effective across wide bands. In practice, many real-world machines produce a combination of both, so hybrid isolation strategies combining neoprene elements with viscous dampers are increasingly common in demanding applications.

The Importance of Vibration Isolation

Vibration isolation protects equipment longevity by reducing transmitted forces that loosen fasteners and crack housings. Uncontrolled vibrations accelerate wear on bearings and seals inside compressors and engines. They also generate secondary noise that travels through structures. Proper isolation with neoprene rubber products cuts maintenance costs and extends service intervals for generators and HVAC systems. Manufacturing facilities gain consistent output when vibration control keeps precision machinery aligned. Marine operators rely on isolation to safeguard hull integrity and crew comfort during extended voyages.

Beyond mechanical wear, excessive vibration can degrade electronic instrumentation and control systems by inducing microphonic noise in sensitive circuits. In pharmaceutical manufacturing, vibration can compromise the accuracy of weighing scales and filling equipment. Effective isolation therefore supports regulatory compliance and product quality while reducing the cumulative fatigue damage that shortens asset life. Over time, these benefits translate into improved return on capital through fewer interventions and extended mean time between failures.

The Role of Neoprene Rubber in Vibration Damping

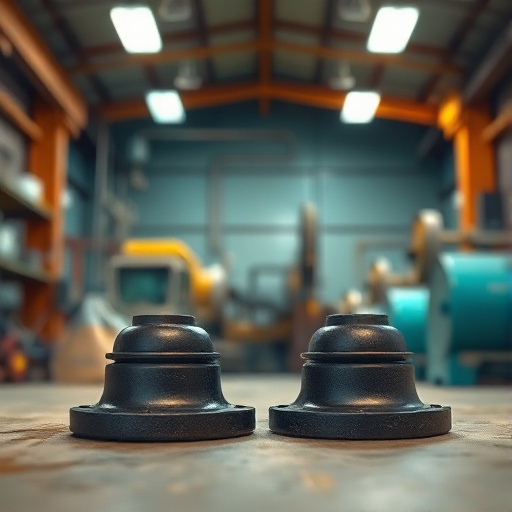

diameter anti vibration rubber vibration damping vibration mounts construction

Properties of Neoprene Rubber

Neoprene rubber delivers excellent resistance to oils, ozone, and weathering while maintaining flexibility across temperature ranges. Its inherent damping capacity absorbs energy from vibrations without rapid degradation. The material bonds reliably to metal plates in anti vibration rubber mounts, creating stable load-bearing interfaces. Neoprene also provides consistent performance under compression, making it suitable for dynamic applications in generators and marine engines. These traits position neoprene rubber ahead of many alternatives when engineers design vibration isolators for harsh operating conditions.

The polymer’s chlorine content imparts flame retardancy and resistance to oxidative attack, while its moderate polarity enables good adhesion to both natural and synthetic fabrics used in reinforced mounts. Typical operating temperature ranges span −40 °C to +120 °C, with special formulations extending performance further. Because neoprene exhibits a relatively high loss tangent across a broad frequency range, it converts vibrational energy into heat efficiently, reducing the amplitude of resonant peaks that would otherwise damage connected equipment.

Comparison with Natural Rubber

Natural rubber offers strong initial resilience yet degrades quickly when exposed to petroleum products or ultraviolet light. Neoprene rubber maintains integrity in oily marine settings and industrial atmospheres where natural rubber swells or cracks. Temperature stability further distinguishes neoprene, which resists hardening in cold climates that stiffen natural rubber excessively. Vibration reduction remains more predictable with neoprene over service life because its molecular structure resists permanent set. Manufacturers therefore specify neoprene rubber mounts for compressors and HVAC systems requiring long-term reliability.

While natural rubber can achieve lower static stiffness and higher resilience at room temperature, its susceptibility to ozone cracking and oil swell limits its use in outdoor or engine-adjacent locations. Accelerated aging tests demonstrate that neoprene retains more than 80 % of its original damping capacity after 1,000 hours of heat aging at 100 °C, whereas natural rubber compounds often fall below 50 %. This difference becomes decisive in applications where maintenance access is restricted or replacement costs are high.

How Neoprene Stiffness Affects Vibration Control

Stiffness in neoprene rubber determines the natural frequency of an anti vibration mount and dictates isolation effectiveness above or below operating frequencies. Higher stiffness suits heavy static loads from transformers or large generators, shifting resonance away from excitation sources. Lower stiffness handles lighter machinery but risks bottoming out under peak loads. Engineers calculate required stiffness to achieve at least 80 percent vibration reduction at target frequencies. Proper selection prevents amplification that occurs when mount resonance coincides with machine operating speeds.

Stiffness is commonly expressed through durometer readings between 50 and 70 Shore A, with corresponding static deflection targets of 3–8 mm under rated load. Dynamic stiffness can be 1.2–1.8 times the static value depending on frequency and amplitude, requiring careful laboratory validation. When the ratio of excitation frequency to mount natural frequency exceeds √2, isolation begins; beyond a ratio of 3, transmissibility drops below 20 %. Selecting the correct compound and geometry therefore involves both analytical modeling and empirical testing to ensure performance margins under worst-case load and temperature combinations.

Applications of Neoprene Rubber for Vibration Damping

Marine Applications: Protecting Boats and Ships

Marine environments subject engines and auxiliary equipment to continuous salt spray and motion-induced vibrations. Neoprene rubber mounts isolate propulsion systems and generators from hull structures, reducing fatigue cracks and transmitted noise. Anti vibration rubber mounts also support pumps and navigation gear on workboats and yachts. Stainless steel hardware combined with neoprene prevents corrosion while maintaining isolation performance. Shipbuilders choose these mounts to extend component life and improve onboard comfort during long deployments.

In high-speed craft, engine orders can reach 3,000 RPM, producing excitation frequencies near 50 Hz that must be isolated from lightweight composite hulls. Neoprene mounts rated for continuous immersion and UV exposure are paired with thrust-bearing assemblies to accommodate both steady propeller loads and transient shock from wave impacts. Classification societies increasingly require documented vibration isolation performance as part of noise and vibration notation, driving wider adoption of certified neoprene solutions.

HVAC Systems and Equipment

HVAC systems rely on fans, chillers, and compressors that generate vibrations capable of traveling through ductwork and building frames. Neoprene rubber vibration isolators decouple these units from rooftops and floors, lowering structure-borne noise in offices and hospitals. Anti vibration pads and mounts also protect sensitive controls from resonance. Variable-frequency drives create changing excitation frequencies that neoprene handles effectively across load ranges. Proper isolation prevents ceiling tiles from rattling and extends service life of rotating equipment inside air-handling units.

Rooftop units often experience wind-induced rocking that introduces low-frequency modes below 5 Hz. Spring-neoprene hybrid isolators combine the low natural frequency of steel springs with the high-frequency damping of neoprene to address both regimes. In critical facilities such as data centers, isolation efficiency is verified through operational deflection shape testing to ensure that vibration levels remain below the strict thresholds required for hard-disk reliability and uninterruptible power supply performance.

Industrial Machinery: Compressors and Generators

Compressors and generators produce high-amplitude vibrations that affect nearby precision machinery and operator stations. Neoprene rubber anti vibration mounts absorb these forces at the base, stabilizing alignment and reducing bolt loosening. Manufacturing plants install such mounts under diesel generators to limit floor transmission to adjacent assembly lines. Elastomeric designs also serve as bumpers on conveyor systems and presses. Consistent vibration control supports higher uptime and lowers the risk of unplanned shutdowns caused by bearing failure.

Standby generators in hospitals must start and reach rated speed within seconds, creating transient torque pulses that can exceed steady-state loads by several times. Neoprene mounts sized for both static weight and dynamic shock loads incorporate internal snubbers to limit deflection while preserving isolation under normal operation. In high-volume production environments, continuous monitoring of vibration signatures on isolated equipment allows predictive maintenance programs to detect early signs of mount degradation before performance is compromised.

Benefits of Using Anti Vibration Rubber Mounts

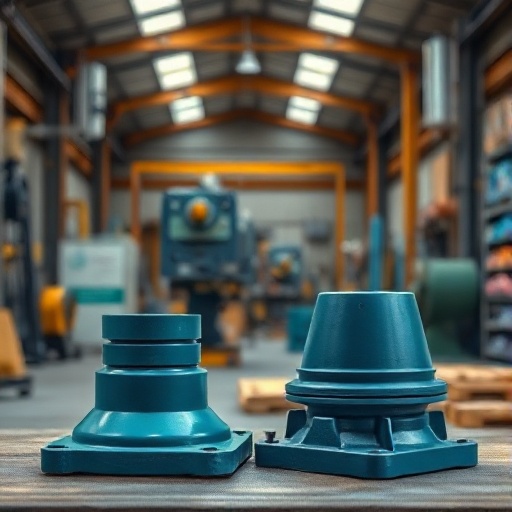

engine anti vibration mounts cone vibration mounts vibration

Noise Control and Reduction

Anti vibration rubber mounts interrupt vibration paths that convert into audible noise within buildings and vessels. Neoprene elements absorb energy before it reaches radiating surfaces such as panels or floors. This approach lowers overall sound pressure levels around compressors and HVAC systems without requiring heavy enclosures. Marine applications benefit from reduced engine hum transmitted through decks. Industrial sites achieve quieter workspaces that comply with occupational exposure limits while maintaining productivity.

Structure-borne sound can travel surprising distances through steel beams and concrete slabs, sometimes radiating noise in rooms far removed from the source. By lowering the driving force at the mount interface, neoprene isolators reduce the radiation efficiency of entire structural systems. In many cases, overall A-weighted noise levels drop by 8–12 dB, which is perceived as roughly half the loudness and often sufficient to meet local ordinances without additional acoustic treatment.

Durability and Longevity

Neoprene rubber withstands repeated compression cycles and environmental exposure far longer than many competing materials. Anti vibration mounts retain load capacity and damping performance after years of service in marine or manufacturing settings. Resistance to oils and temperature swings prevents hardening or cracking that would compromise vibration isolation. Stainless steel components paired with neoprene further extend mount life in corrosive locations. Facilities report fewer replacements and reduced downtime when they standardize on these robust isolators.

Accelerated life testing under combined heat, ozone, and cyclic loading shows that properly formulated neoprene compounds retain functional stiffness for more than 10,000 hours. Field data from offshore platforms confirm service intervals exceeding seven years with minimal drift in natural frequency. This longevity reduces both direct replacement costs and the indirect expense of production interruptions during change-outs.

Cost-Effectiveness in Manufacturing

Integrating anti vibration rubber mounts during equipment assembly avoids expensive retrofits later. Neoprene solutions reduce warranty claims tied to vibration-induced failures in generators and compressors. Lower noise output also decreases the need for additional acoustic treatments in finished products. Manufacturing lines run more consistently because isolated machinery maintains calibration. Overall lifecycle costs drop when vibration control becomes part of the original design rather than an afterthought.

Early integration also simplifies supply-chain logistics because standardized mount footprints allow common parts across multiple machine families. When lifecycle cost models include energy savings from reduced frictional losses in bearings and seals, the economic case for neoprene isolation becomes compelling even for mid-range industrial equipment previously considered too cost-sensitive for advanced damping solutions.

Choosing the Right Anti Vibration Mounts

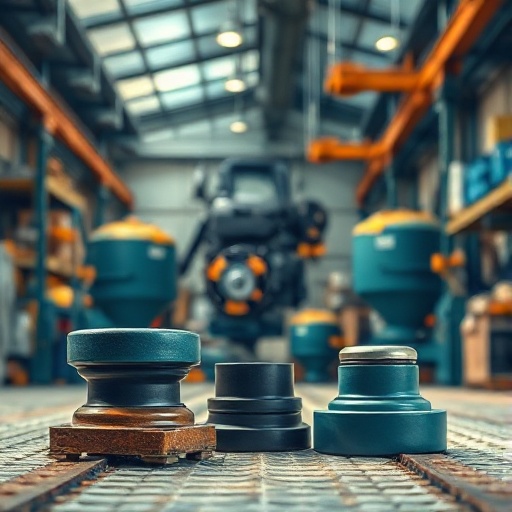

construction anti vibration rubber vibration isolators vibration machine

Factors to Consider: Height, Diameter, and Load

Height and diameter of anti vibration rubber mounts influence both static deflection and lateral stability under load. Engineers match mount dimensions to the weight and footprint of generators, transformers, or HVAC units. Excessive height can reduce stiffness and allow rocking motions at certain frequencies. Diameter affects shear area and therefore damping capacity. Accurate load calculations ensure each mount operates within its optimal deflection range for maximum vibration reduction across expected operating conditions.

Load distribution must account for both dead weight and dynamic forces arising from acceleration, wind, or seismic events. Finite-element analysis of the supported structure often reveals that corner mounts experience up to 30 % higher loads than center mounts, requiring either stiffer compounds or additional units at perimeter locations. Safety factors of 1.5–2.0 are commonly applied to rated capacities to accommodate occasional overloads without bottoming.

Different Types of Vibration Isolators

Elastomeric mounts using neoprene rubber suit most stationary machinery applications. Wire rope isolators handle extreme shock and high-temperature environments where rubber would degrade. Cone mounts provide directional stiffness for engine installations. Pipe hanger isolators decouple fluid lines from structures. Damper designs combine neoprene with viscous fluids for broadband control. Selection depends on frequency content, environmental exposure, and required maintenance access for each specific machine or marine installation.

Recent developments include internally pressurized air mounts that offer adjustable stiffness through an external valve, allowing fine-tuning after installation. For ultra-low-frequency applications below 3 Hz, negative-stiffness mechanisms can be combined with neoprene elements to achieve isolation levels unattainable with conventional elastomers alone. Each technology carries trade-offs in cost, maintenance, and temperature sensitivity that must be evaluated against the project requirements.

Installation Tips for Optimal Performance

Level mounting surfaces before bolting anti vibration rubber mounts in place to avoid uneven loading. Torque fasteners to manufacturer specifications to maintain consistent compression on neoprene elements. Position mounts symmetrically around the machine center of gravity for balanced support. Inspect rubber condition periodically for signs of ozone cracking or oil saturation. Proper alignment during installation prevents premature wear and preserves the designed natural frequency of the entire vibration isolation system.

After initial installation, a vibration acceptance test using portable accelerometers verifies that transmissibility meets design targets. Any deviation often indicates uneven settling or incorrect torque and can be corrected before equipment enters full service. Scheduled visual and durometer inspections every six to twelve months allow early detection of material degradation, enabling planned replacement rather than reactive downtime.
